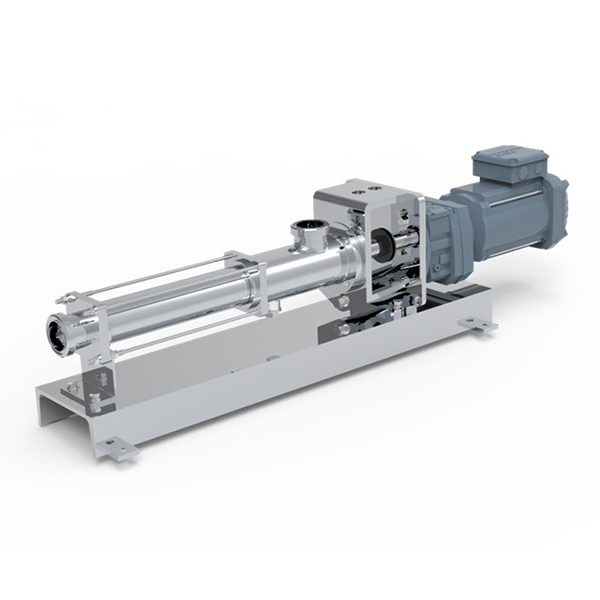

progressive cavity pump for food health and safety industry

The structural design and material selection of the food hygiene type progressive cavity pumps are in strict compliance with food hygiene standards, ensuring that the medium is not contaminated during conveying and is easy to clean and maintain. The pump is suitable for handling viscous liquids, slurries, suspensions and other fluids with strict hygiene requirements. Its continuous, low-pulsation delivery, low-noise design, precise flow control and easy cleaning and maintenance features meet stringent industry requirements.

progressive cavity pump Main features:

1. Continuous low-pulsation conveying: the pump provides stable, low-pulsation material conveying, which ensures smoothness during the conveying process and reduces fluid disturbances and fluctuations, suitable for applications that are sensitive to flow fluctuations.
2. Low mechanical vibration and low noise: the design optimization of the pump structure ensures low mechanical vibration and low noise, suitable for applications requiring quiet and stable operation, reducing equipment wear and maintenance costs.
3. Flow rate is proportional to the speed, suitable for metering use: as the flow rate is proportional to the speed, the pump is particularly suitable for metering applications that require precise control of the flow rate, such as liquid metering and transportation in the food and pharmaceutical industries.
4. Sanitary quick-connect quick-change design, easy to clean and maintain: the import and export of sanitary quick-connect quick-change design, easy to disassemble and clean, in line with the strict requirements of the food and pharmaceutical industries on hygiene and cleanliness, reducing the risk of cross-contamination.
5. Mirror polishing of overflow parts, good flow linearity: the pump overflow parts with mirror polishing treatment, with excellent flow linearity, reducing the dead space and material residue, to avoid scaling, to ensure the purity of the material.

progressive cavity pump Technical parameters:

• Flow rate: up to 140 m³/h, suitable for high flow material transportation.
• Pressure: up to 48 bar, suitable for high pressure conditions.
• Rotor: The rotor is coated with anti-wear, corrosion-resistant design, providing 304, 316, 316L, 2205 and other materials to choose from, in order to adapt to different conveying media and working environment.
• Stator: The stator is made of imported special formula material, providing food grade NBR, EPDM, FPM and other materials to ensure hygiene and durability.
• Shaft seal: Standard single end mechanical seal, with low friction resistance, high temperature, corrosion and wear resistance, stable and reliable sealing effect. According to the actual working conditions, other types of single/double end mechanical seals, assembled or other types of seals can also be used, and packing seals can also be improved.
• Reducer: Equipped with R series helical gear hardened gear reducer, with high load carrying capacity, high efficiency and long service life, suitable for high load operation, the brand of the reducer can be selected according to customer requirements.
• Motor: A variety of motor options are available, including three-phase AC motor, three-phase inverter motor, three-phase explosion-proof motor and three-phase inverter explosion-proof motor, which are suitable for different working environments and needs. The motor can be selected according to the brand specified by the customer, and provide high energy-efficiency motor options.
• Sanitary Interface: Sanitary quick-connect and quick-change interface design, easy to clean and maintain, in line with sanitary standards, suitable for working conditions that require frequent cleaning and replacement.

progressive cavity pump Main uses:

1. Food industry: for all kinds of food liquid or high viscosity material transportation, such as juices, syrups, dairy products, sauces, seasonings, etc., especially suitable for the requirements of high hygiene standards of food processing.
2. Pharmaceutical industry: It is used for liquid transportation in the pharmaceutical process to ensure no pollution and meet the GMP (Good Manufacturing Practice) standard.
3. Cosmetic industry: used for the transportation of cosmetic raw materials, such as lotions, creams, shampoos, etc., to ensure cleanliness and safety.
4. Lithium battery industry: used for lithium battery production process viscous liquid, slurry conveying, to ensure efficient and stable conveying performance.
5. Other industries: Suitable for any industries with high requirements on material hygiene and cleanliness.
