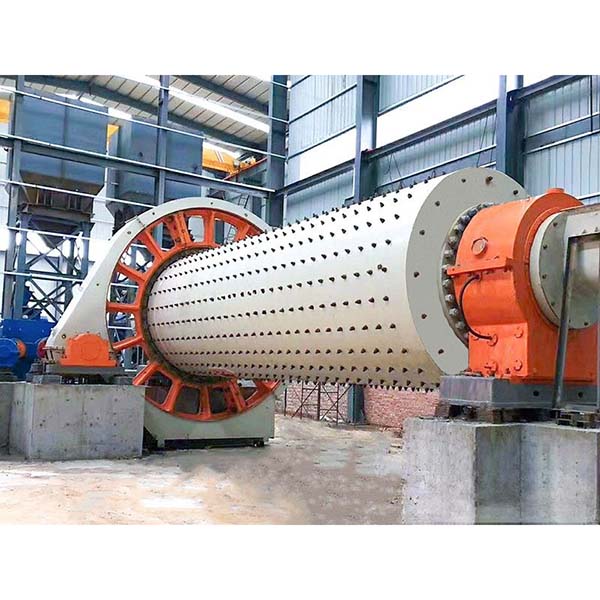

raw material ball mill for dry and wet processes for cement

The working principle of raw material ball mill is based on the interaction of centrifugal force, gravity and impact force of the grinding media, which can efficiently grind the materials to the required fineness to meet the needs of the production process.

The basic function of the raw material ball mill is to refine the raw materials of the cement plant, such as limestone, clay, iron ore, etc., into powder for subsequent chemical reaction and high temperature firing. Raw material ball mill is not only widely used in cement industry, but also applicable to electric power, metallurgy, chemical industry and other industries, used to deal with all kinds of ores and other grindable materials. According to different process requirements, raw material ball mill can be divided into dry raw material ball mill, wet raw material ball mill and dry raw material ball mill, which can flexibly cope with different production environments and material processing requirements.

Characteristics of raw material ball mill:

1. A variety of adaptability: raw material ball mill can handle different types of materials, has a wide range of adaptability. Whether it is wet or dry production, can meet different production requirements. At the same time, some of the raw material ball mill also has material drying function, in the grinding process to realize the synchronous operation of drying and grinding.
2. High efficiency, energy saving and environmental protection: the raw material ball mill adopts optimized design, which can improve the production efficiency and reduce energy consumption, in line with the requirements of modern industry on energy saving and emission reduction. Its high efficiency grinding capacity makes the energy utilization rate higher and reduces the waste and resource waste.
3. Easy to adjust the fineness: it can flexibly adjust the grinding fineness of materials to adapt to different production processes. The equipment is easy to adjust, and can be automatically adjusted in the production process to ensure the consistency of product quality.
4. A variety of transmission methods: raw material ball mill transmission system design is flexible, including edge transmission, center transmission, multi-point meshing edge transmission and other ways, according to the size of the equipment and the use of demand adjustment, to ensure the stability and efficiency of the transmission system.

The working principle of raw material ball mill:

1. Mainly depends on the basic principle of ball mill. When the mill cylinder is driven by the transmission device to rotate, the internal grinding body (usually steel balls) is adhered to the inner wall of the cylinder under the action of centrifugal force, and with the rotation of the cylinder, the grinding body is brought to a certain height, and then it falls down freely by gravity for impact and grinding. This repeated process of rising, falling, collision, so that the material in the role of grinding media gradually become finer.
2. In addition, the liner design inside the mill also plays an important role. By using a new type of grading liner, ladder liner and other designs, the contact area between the material and the grinding body is increased, thus improving the grinding efficiency. The diaphragm structure adopts adjustable lifting plate and fixed lifting plate, which ensures the working stability of the mill, and also makes the maintenance and installation of the equipment easier.

Advantages of raw material ball mill:

1. Strong adaptability and flexibility: cement raw material ball mill can not only adapt to different materials, but also according to the need for dry or wet production, with high efficiency grinding and drying function, can cope with a variety of working environment and material type needs.
2. Advanced transmission system: the mill’s transmission system adopts a variety of design forms, common edge drive, center drive and so on. The driving mode usually includes the combination of asynchronous motor and reducer, which ensures that the equipment can run efficiently and stably under different working conditions.
3. A variety of support methods to ensure the stability of the equipment: raw material ball mill adopts a variety of support methods, such as both ends of the static and dynamic pressure bearings, rocker-type bearings, etc., to ensure the stability of the equipment under high load. In large-scale equipment, it is also equipped with high and low pressure lubrication station, which further guarantees the operating life of the equipment.
4. Modern design, high reliability: the optimized design of the cylinder through finite element analysis technology ensures its structural strength and service life. American AGMA standard design of open gears, equipped with gear cover with good sealing performance and automatic lubrication system, ensures the stability and reliability of the equipment under long time operation.

Application fields of raw material ball mill:

1. Cement industry: raw material ball mill is widely used in the raw material grinding process of cement plant, responsible for grinding limestone, clay, iron ore and other materials into the required fineness, providing suitable raw materials for cement production.
2. Metallurgical industry: In metallurgical industry, raw material ball mill is used to deal with all kinds of ores, such as iron ore, bauxite, etc., which can grind the ores into suitable fineness to meet the demand in smelting process.
3. Chemical industry: the chemical industry uses raw material ball mill to deal with gypsum, salts and other chemical raw materials, to help the chemical reaction and subsequent production process.
4. Electric power industry: In the electric power industry, raw material ball mill is used to grind coal, lime and other fuels to provide boilers with efficient combustion of fine powder, improve combustion efficiency and reduce emissions.
5. Other industries: In addition, raw material ball mill is also widely used in ceramics, glass, building materials and other industries, used to grind a variety of mineral raw materials, to ensure the stability of the subsequent production process and product quality.
