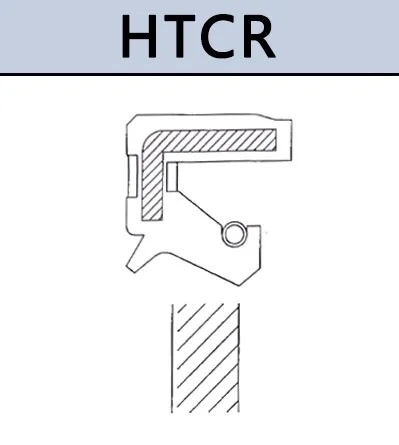

right handed axle gearbox oil seal which is HTCR type

HTCR type oil seal, belonging to rotary oil seal, is mainly used for oil sealing. The periphery of the sealing lip is equipped with an oil return line, which has the function of returning the fluid leaking outward from the sealing lip to the inside by means of a spiral pumping action. Therefore, this oil seal is mainly used for engine crankshaft front oil seal, crankshaft rear oil seal, gearbox and so on.

Below are some key features and application notes of HTCR type oil seals:

1. Features of HTCR type oil seal
   • Rotary Oil Seal Design: HTCR type oil seal is specially designed for rotary shaft system, which can adapt to the sealing requirements brought about by the rotary movement of the shaft and ensure stable and reliable sealing effect.
   • Right-hand rotation: The seal is designed for right-hand (clockwise) rotation of the shaft. The design of the right-handed seal takes into account the influence of the shaft rotation direction on the sealing effect, and can effectively cope with the sealing challenges brought about by the right-handed rotation.
   • Seal Lip Design: The seal lip is usually made of highly elastic materials (e.g., Viton, Amino Rubber, etc.) with good abrasion and oil resistance. The design of the sealing lip ensures that the oil seal forms a tight seal on the rotating shaft.
   • Optional Oil Return Function: Some HTCR type oil seals may be equipped with an oil return line or similar structure to direct oil leaking from the sealing lip back to the interior. This design helps to minimize oil leakage and improve seal stability.
2. Application Areas
   • Right Hand Drive Axles: In right hand drive axle systems, HTCR type seals are used to seal the rotating portion of the axle, preventing oil leakage and keeping the bearing area clean.
   • Gearbox: In gearboxes, HTCR type oil seals are used to seal the lubricating oil inside the gearbox, preventing the oil from leaking out of the shaft seal and keeping the lubrication system of the gearbox working properly.
   • Other applications: HTCR type oil seals can also be used in other devices that need to seal rotating shafts, such as mechanical equipment, industrial machinery and vehicle transmission systems.

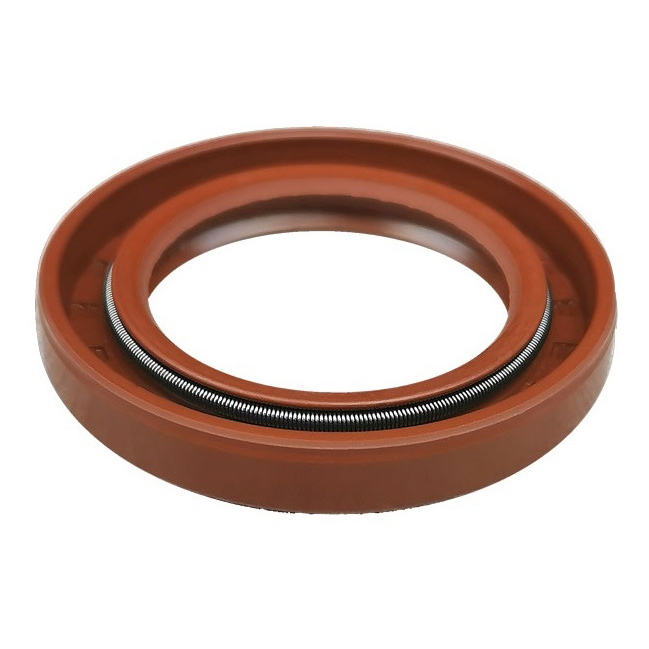

right handed axle gearbox oil seal
