road roller

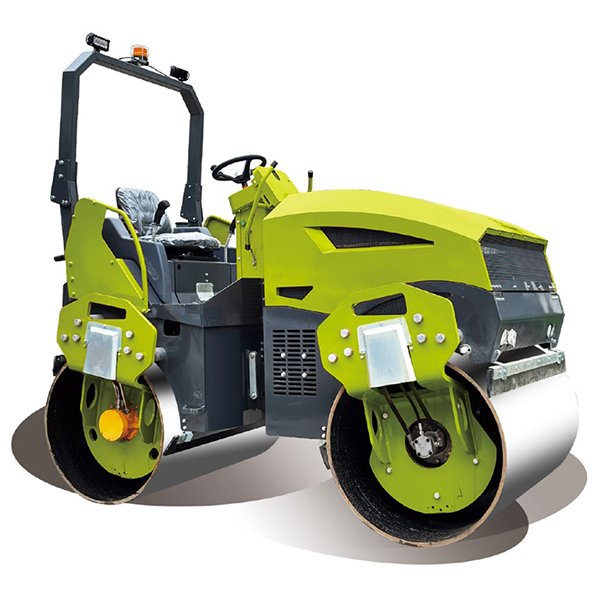

road roller with double steel wheels B5000 4800 kg

This 4.8-ton road roller features powerful performance and excellent compaction ability, making it suitable for medium and large-scale roadworks, airports, and infrastructure construction. It has a robust structure, is easy to operate, and offers high efficiency.

Contact Us
Description

road roller with double steel wheels Features

  • Equipped with famous brand power, quality assurance, superior performance
  • Eagle-eye body design, wide field of vision, beautiful and generous
  • Imported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward
  • LED Display Dashboard
  • Front and rear lighting and warning lights, can be constructed at night
  • Ergonomic driving
  • The product has passed the CE certification, and the design of the Red Star Award
  • The steel wheel is equipped with an outline light, which is easy to operate safe and efficient
Technical Parameters
road roller with double steel wheels B5000 4800 kg
ModelB5000
Weight
Operating Weight(kg)4800
Static line load(n/cm)155
Size
Working width(mm)1580
Overall length(mm)2920, 2850
Overall height(mm)2025, 2680
Outside turning radius(mm)4380
Height of welt(mm)685
Ground clearance(mm)445
Wheelbase(mm)1950
Steel wheel size
Width of steel wheel(mm)1400
Diameter of steel wheel(mm)900
Thickness of of steel wheel housing(mm)20
Type of steel wheelSmooth wheels(integral)
Stagger wheel(left, right)(mm)50
Engine
Engine brandChangchaiYanmarKubota
Engine modelZN490B4TNV88V2403
Engine TypeDiesel, in-line, water cooled, four stroke
Number of cylinders4
Output Power(kw)3634.533.6
Rotating speed(rpm)240030002400
Fuel consumption(g/kwh)255261255
Lubricating oil(L)6.57.49.5
Drive
Electrical equipment(V)12
Drive modeVariable piston pump stepless variable speed double wheel drive motor parallel
Speed, infinitely variable(km/h)0 to 12
Theoretical climbing ability(%)35, 40
Steering
Angle of swing8
Angle of steering30
Mode of steeringHydraulic cylinder articulated steering
Steering systemSwing articulated type
Excitation system
Vibrating steel wheelfront, rearfront+rear
Drive formHydraulic motor
Drive formhydraulic motor
Frequency of vibration(hz)50
Amplitude of vibration(mm)0.5
Exciting force(front, rear, double vibration)(kn)602x60
Sprinkler system
FormWater is sprayed intermittently between pressures
Capacity
Lubricant oil of steel wheels(L)9.8x2
Hydraulic oil tank(L)60
Fuel tank(L)44.5
Water tank(L)180
