road roller with diesel inline water cooled

Equipped with famous brand power, quality assurance, superior performance

Eagle-eye body design, wide field of vision, beautiful and generous

Imported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward

LED Display Dashboard

Front and rear lighting and warning lights, can be constructed at night

Ergonomic driving

The product has passed the CE certification, and the design of the Red Star Award

The steel wheel is equipped with an outline light, which is easy to operate safe and efficiently

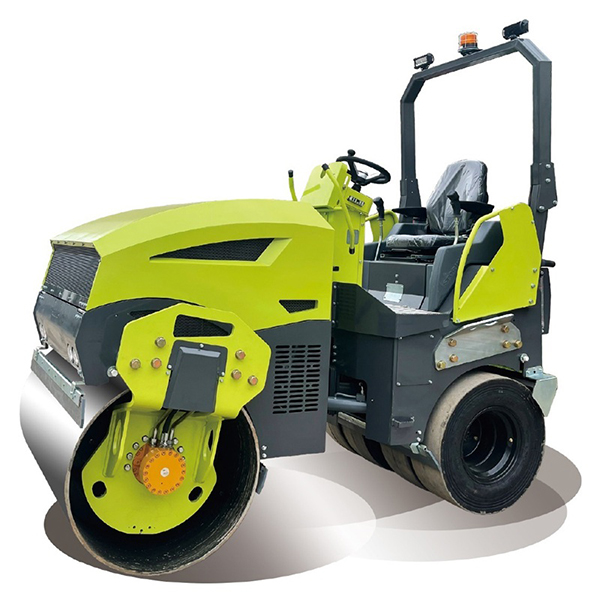

road roller with diesel inline water cooled B5000DE 5 ton
Model	B5000DE
Weight
Operating Weight(kg)	5000
Static line load(n/cm)	140
Size
Working width(mm)	1580
Overall length(mm)	3000, 2905
Overall height(mm)	2025, 2680
turning radius(mm)	4380
Drum width(mm)	1400
Drum diameter(mm)	900
Wheelbase(mm)	1960
Steel drum thickness(mm)	17
Staggered wheel(mm)	50
Tire size(mm)	10.5, 80-16
total tire width(mm)	1340
Number of tires	4
Supporting method	Middle support/Both sides support
Drive
Engine brand	Changchai, Yanmar, Kubota
Engine model	ZN490B, 4TNV88, V2403
Engine Type	Diesel inline water-cooled four-stroke
Number of cylinders	4
Output Power(kw)	36, 34.5, 33.6
Rotating speed(rpm)	2400, 3000, 2400
Electrical equipment(V)	12
Drive method	Hydraulic motor drive
Walking characteristics
Speed, infinitely variable(km/h)	0 to 12
Theoretical grade ability(vibration on/off)(%)	35, 40
Brake
Working brake	Variable displacement piston pump
Turn
Steering method	Hydraulic Cylinder Articulated Steering
Steering system	Swing articulated
Vibration system
Vibrating drum	Front vibration
drive form	Hydraulic motor
Vibration frequency(hz)	50
Vibration amplitude(mm)	0.5
Exciting force(kn)	68
Sprinkler system
Form	Intermittent pressure spray
Capacity
Hydraulic oil(L)	60
Fuel capacity(L)	44.5
Water tank capacity(L)	180

road roller with diesel inline water cooled B5000DE 5 ton

This 5-ton road roller features powerful performance and excellent compaction results, making it suitable for a variety of medium and large-scale roadways, plazas, and infrastructure compaction projects. It has a sturdy body, is easy to operate, and offers reliable performance.

Description
Technical Parameters

Description

Equipped with famous brand power, quality assurance, superior performance
Eagle-eye body design, wide field of vision, beautiful and generous
Imported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward
LED Display Dashboard
Front and rear lighting and warning lights, can be constructed at night
Ergonomic driving
The product has passed the CE certification, and the design of the Red Star Award
The steel wheel is equipped with an outline light, which is easy to operate safe and efficiently

Technical Parameters

road roller with diesel inline water cooled B5000DE 5 ton
Model	B5000DE
Weight
Operating Weight(kg)	5000
Static line load(n/cm)	140
Size
Working width(mm)	1580
Overall length(mm)	3000, 2905
Overall height(mm)	2025, 2680
turning radius(mm)	4380
Drum width(mm)	1400
Drum diameter(mm)	900
Wheelbase(mm)	1960
Steel drum thickness(mm)	17
Staggered wheel(mm)	50
Tire size(mm)	10.5, 80-16
total tire width(mm)	1340
Number of tires	4
Supporting method	Middle support/Both sides support
Drive
Engine brand	Changchai, Yanmar, Kubota
Engine model	ZN490B, 4TNV88, V2403
Engine Type	Diesel inline water-cooled four-stroke
Number of cylinders	4
Output Power(kw)	36, 34.5, 33.6
Rotating speed(rpm)	2400, 3000, 2400
Electrical equipment(V)	12
Drive method	Hydraulic motor drive
Walking characteristics
Speed, infinitely variable(km/h)	0 to 12
Theoretical grade ability(vibration on/off)(%)	35, 40
Brake
Working brake	Variable displacement piston pump
Turn
Steering method	Hydraulic Cylinder Articulated Steering
Steering system	Swing articulated
Vibration system
Vibrating drum	Front vibration
drive form	Hydraulic motor
Vibration frequency(hz)	50
Vibration amplitude(mm)	0.5
Exciting force(kn)	68
Sprinkler system
Form	Intermittent pressure spray
Capacity
Hydraulic oil(L)	60
Fuel capacity(L)	44.5
Water tank capacity(L)	180
