Slide-Piece Stepless Speed Change Chain (CVT Chain) is a precision-engineered solution for continuously variable transmission (CVT) systems, enabling seamless adjustment of output speed without changing gear ratios. Its advanced design and structural components deliver smooth, reliable performance for modern automotive and industrial applications.

Main Structure & Components

• Active Pulley Assembly: Receives engine torque and initiates transmission process.
• Driven Pulley Assembly: Works in tandem with the active pulley, transferring torque via the steel belt.
• Steel Belt: Connects the pulley assemblies, ensuring efficient torque transfer and speed adjustment.
• Single Planetary Star Gear System: Provides advanced torque management and integrates with the multi-plate clutch for smooth power delivery.
• Gear Intermediate Shaft: Transmits torque from the planetary gear system to the differential.
• Differential: Evenly distributes drive to the axles, enabling stepless speed change across the system.

Principle of Operation

• Torque from the engine passes through the torque converter to the transmission system.
• The active pulley assembly transfers torque to the driven pulley assembly via the steel belt.
• Torque is routed through a single planetary gear system with a multi-plate clutch to the internal shaft.
• The gear intermediate shaft then delivers torque to the differential, which distributes power to the axles.
• This arrangement enables continuously variable speed adjustment without changing gear ratios.

Technical Specifications & Performance Parameters

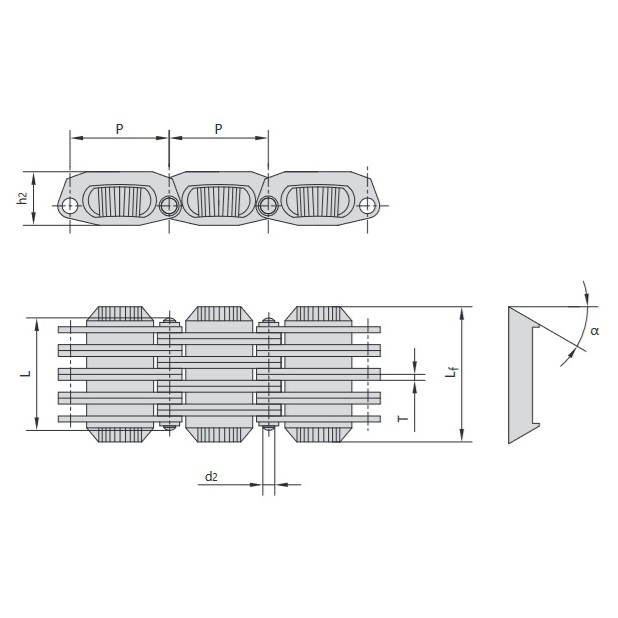

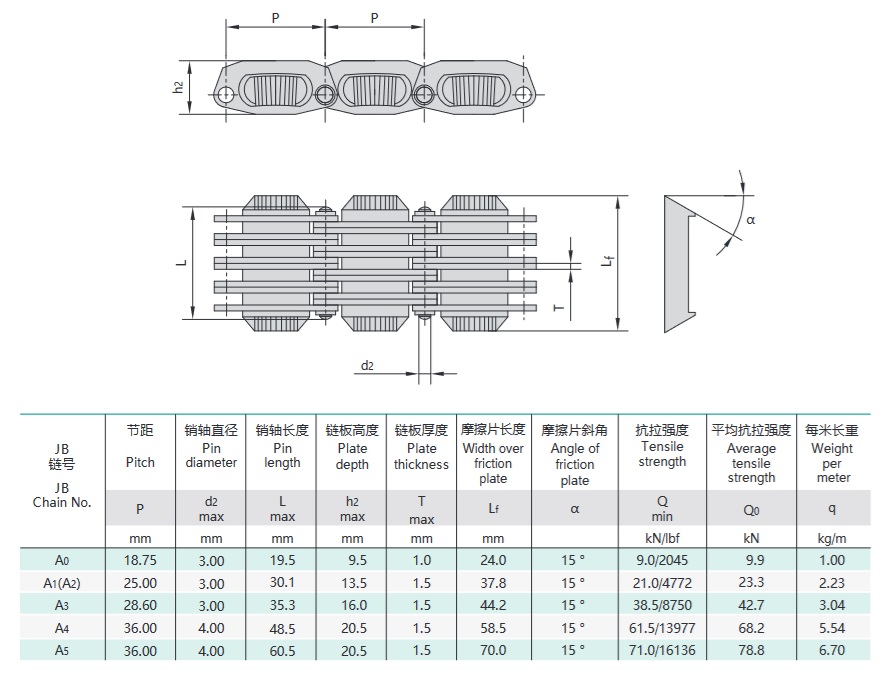

• Chain Pitch
• Chain Plate Thickness
• Roller Diameter
• Pin Diameter
• All parameters are selected and optimized for specific application requirements, directly impacting system performance and reliability.

Key Benefits

• Stepless Speed Change: Adjusts output shaft speed smoothly and efficiently—no discrete gear shifts required.
• High Performance & Reliability: Precision construction ensures long-lasting operation and consistent power delivery.
• Wide Application Range: Suitable for automotive CVT systems and industrial machinery requiring dynamic speed control.

The Slide-Piece Stepless Speed Change Chain represents the pinnacle of CVT technology, delivering unmatched adaptability, efficiency, and reliability for advanced transmission needs.
