single strand roller chain taper lock sprocket ansi

single strand roller chain taper lock sprocket ansi standard for equipment 120B-1

This design utilizes a tapered hub and corresponding tapered bore, which allows the sprocket to be securely mounted to the shaft using tapered locking bushings without creating clearance.

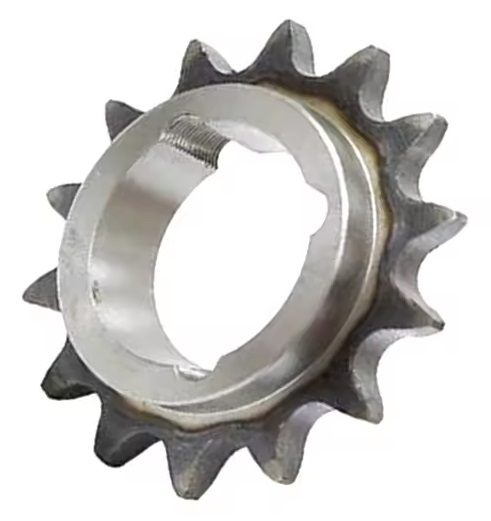

Model: 120B-1 Simplex Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment: Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

120B-1 Simplex Taper Locking Sprocket is a premium power transmission component designed for strength, reliability, and ease of installation. Featuring a mechanical interference fit with a taper lock bushing mechanism, this sprocket ensures a secure connection between the sprocket hub and shaft—without the need for keyways or set screws.

Main Features

Type: Simplex sprocket (single chain row)
Size: 120B-1, denoting pitch size and specific number of teeth
Taper Lock Bushing: Enables easy mounting and removal, simplifying maintenance and replacement
Material: Made from high quality steel for excellent durability and strength
Teeth: Precisely engineered tooth profile for optimal engagement and smooth power transmission
Pitch: Consistent pitch size ensures perfect compatibility with ANSI standard roller chains
Single Chain Design: Designed for use with single-row chains

Benefits

Strong and reliable mechanical connection
Easy installation and removal—no keyways or set screws required
Compatible with ANSI standard roller chains
Durable, long-lasting construction reduces maintenance costs
Efficient power transmission for industrial and mechanical systems

The 120B-1 Simplex Taper Locking Sprocket is the ideal choice for efficient, hassle-free power transmission in demanding environments.
