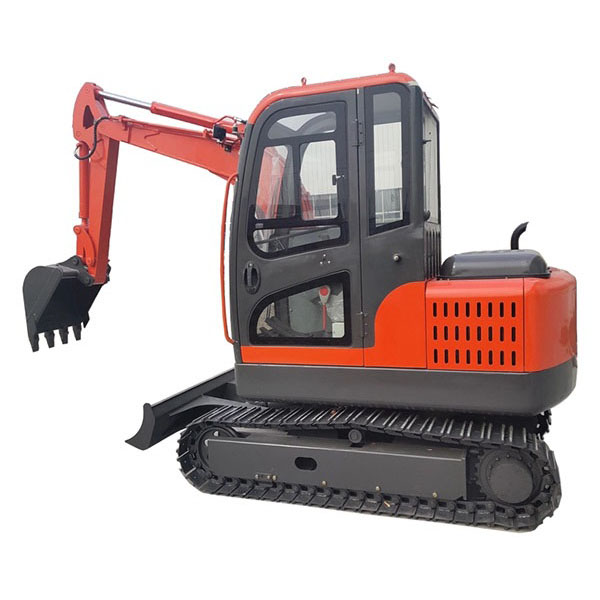

CE EPA Approved Hydraulic Boom Swing Small Excavator 3 Ton BD30

Advantage Points of the Small Excavator:

Use Kubota engine imported from Japan, more power, low fuel consumption;

Fully imported hydraulic system,

Telescopic lower frame, easy to in and out working side, track can back to 980mm when transportation, when working and reach to 1300 mm.

Swing boom, can be used in narrow area and working along the wall.

Variable dozer

Boom deflection

The driving shed for assembly structure, convenient disassembly and optional

Suitable for a wide variety of genera, hitch, break hammer, Auger, narrow/plain/title buckets

Front window can open

small excavator with CE EPA certification 3 ton BD30
Model	BD30
Machine Size
Overall dimension (Lx W x H)	4170 x 1300 x 2280 mm
Axle base(Track length on ground)	1230 mm
Track gauge	1070 mm
Minimum Ground clearance	230 mm
Swing radius at tail	1180 mm
Track System
Maximum Travel speed	3.5 km/h
Width of track shoe	230 mm
Number of track shoe per side	38 PCS
Number of upper roller per side	0
Number of bottom roller(per side)	4
Engine
Emission Standard	Euro 5, EPA
Engine Brand	Kubota
Power, Rotation speed	14.2 kw(HP), 2000 rpm
Optional Engine	China Laidong 22.1 kw, 2300 rpm
Number of cylinder	3
Performance Parameter
Standard Bucket capacity	0.1 cubic meters
Swing speed	12 rpm
Maximum Grade ability	30 degree
Maximum Bucket digging force	15.3 KN
Maximum Arm digging force	10.5 KN
Hydraulic system pressure	18 Mpa
Machine weight	3000 kg
Arm length	1000 mm
Working Range
Maximum Digging height	3700 mm
Maximum Dumping height	2290 mm
Maximum Digging depth	2450 mm
Maximum Vertical digging depth	2160 mm
Maximum Digging radius	4370 mm
Minimum swing radius	2020 mm
Maximum Lifting height of blade	240 mm
Maximum Cutting depth of blade	310 mm
Boom swing angle(Left)	75 degree
Boom swing angle(Right)	45 degree

small excavator with CE EPA certification 3 ton BD30

A small excavator features a compact size and flexible operation, making it suitable for earthmoving tasks in confined spaces, landscaping, and municipal engineering projects. It offers high efficiency, energy savings, and easy maintenance.

Description
Technical Parameters

Description

Use Kubota engine imported from Japan, more power, low fuel consumption;
Fully imported hydraulic system,
Telescopic lower frame, easy to in and out working side, track can back to 980mm when transportation, when working and reach to 1300 mm.
Swing boom, can be used in narrow area and working along the wall.
Variable dozer
Boom deflection
The driving shed for assembly structure, convenient disassembly and optional
Suitable for a wide variety of genera, hitch, break hammer, Auger, narrow/plain/title buckets
Front window can open

Technical Parameters

small excavator with CE EPA certification 3 ton BD30
Model	BD30
Machine Size
Overall dimension (Lx W x H)	4170 x 1300 x 2280 mm
Axle base(Track length on ground)	1230 mm
Track gauge	1070 mm
Minimum Ground clearance	230 mm
Swing radius at tail	1180 mm
Track System
Maximum Travel speed	3.5 km/h
Width of track shoe	230 mm
Number of track shoe per side	38 PCS
Number of upper roller per side	0
Number of bottom roller(per side)	4
Engine
Emission Standard	Euro 5, EPA
Engine Brand	Kubota
Power, Rotation speed	14.2 kw(HP), 2000 rpm
Optional Engine	China Laidong 22.1 kw, 2300 rpm
Number of cylinder	3
Performance Parameter
Standard Bucket capacity	0.1 cubic meters
Swing speed	12 rpm
Maximum Grade ability	30 degree
Maximum Bucket digging force	15.3 KN
Maximum Arm digging force	10.5 KN
Hydraulic system pressure	18 Mpa
Machine weight	3000 kg
Arm length	1000 mm
Working Range
Maximum Digging height	3700 mm
Maximum Dumping height	2290 mm
Maximum Digging depth	2450 mm
Maximum Vertical digging depth	2160 mm
Maximum Digging radius	4370 mm
Minimum swing radius	2020 mm
Maximum Lifting height of blade	240 mm
Maximum Cutting depth of blade	310 mm
Boom swing angle(Left)	75 degree
Boom swing angle(Right)	45 degree
