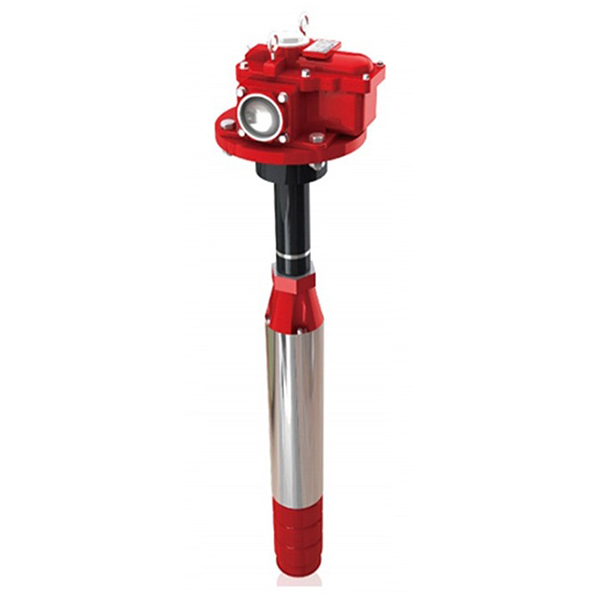

submersible fuel pump for oil transfer at gas stations

High-flow submersible fuel pumps are capable of delivering 3 hp and 5 hp for 50 Hz or 60 Hz power frequencies, and their operating performance demonstrates the advantages of high efficiency, reliability, and low noise.
The working principle of submersible fuel pumps is based on their unique design: the pump motor and pump wheel are one unit, working inside the liquid. With the traditional external motor and long shaft design is different, submersible refueling pump motor is directly immersed in the liquid, which not only effectively solves the problem of heat dissipation of the motor, but also avoids the traditional motor work when the oscillation and energy loss. The close combination of the motor and pump wheel makes the pump run more smoothly and the noise is significantly reduced.

The pump motor adopts “submerged motor” technology, in which the motor stator and rotor between a layer of about A4 paper thickness of the gap, the liquid through the gap fast flow, so as to achieve two major effects:

1. cooling function: the liquid through the gap inside the motor, effectively cooling the motor, to avoid damage to the motor due to overheating, to extend the life of the motor.
2. lubrication function: the liquid flows through the gap between the stator and rotor, playing the role of lubricating the bearings, to ensure the smooth operation of the motor and bearings, reduce friction and wear and tear, and further enhance the reliability of the pump.

This design makes the submersible refueling pump have a low failure rate, almost no maintenance, and a long operating life.

submersible fuel pump Features:

1. TURBOCHARGING & HIGH EFFICIENCY MOTOR: Adopting turbocharging technology and reliable motor design ensures the efficiency and speed of oil delivery. Through turbocharging, the pump is able to provide higher output flow rate and pressure to meet the demand of high-flow oil delivery.
2. efficient and stable working performance: the pump is driven by three-phase power supply, low failure rate during operation, stable and reliable performance. Designed to be compatible with a variety of voltage requirements, adapt to different working environments, and be able to operate for a long time under a variety of oil products and conditions.
3. Convenient Maintenance Design: The convenience of maintenance is fully considered in the design, and the pump structure simplifies the maintenance process, reduces the repair time, and improves the overall efficiency and availability of the system.
4. high flow and high pressure: the pump is particularly suitable for occasions requiring high flow transfer, the maximum flow rate can reach 1000 liters / min, can be efficient oil transfer, and has a high pressure output capacity, to ensure that the oil can be transported over long distances and stable.
5. durable motor design: the motor adopts carbon bearing and stainless steel casing design, which improves the reliability of the motor and ensures the stable operation of the pump for a long time. Carbon bearings and stainless steel shell material characteristics make the motor can still maintain good working performance in harsh environments.

Power requirements:

• Power supply type: use three-phase AC power.
• Voltage range:
  208-230V AC
  460V AC
  575V AC
• Power classification:
  3 Horsepower
  5 Horsepower

High flow submersible fuel pump motor specifications:

• Fixed speed: 2900rpm (rpm) with turbo structure for stable operation at high rpm and thermal protection.
• 3 Horsepower Pump Specifications:
  Working pressure: 36 psi
  Maximum flow rate: 600 liters per minute
  Outlet Pressure: 276 kPa
• 5 Horsepower Pump Specifications:
  Working pressure: 42 psi
  Maximum flow rate: 1000 liters per minute
  Outlet pressure: 276 kPa

submersible fuel pump Application areas:

1. gas station: widely used in gas stations for high-speed, stable delivery of oil, able to meet the needs of high flow and high pressure.
2. Oil storage and transportation: suitable for oil storage and transportation as well as oil pressurized transportation of tanker trucks, pipelines and other equipment.
3. Industry and agriculture: It is suitable for all kinds of industry and agriculture which need large flow oil transportation, such as fuel supply, irrigation system, and equipment oil supply system.
4. petrochemical industry: in the petrochemical industry, submersible refueling pumps can also be used for a variety of petrochemical liquid transportation, especially for the requirements of high-flow and high-pressure transportation tasks.
