triplex taper lock sprockets type B

triplex taper lock sprockets 16B-3 ISO roller chain standard

This design utilizes a tapered hub and corresponding tapered bore, which allows the sprocket to be securely mounted to the shaft using tapered locking bushings without creating clearance.
Model: type B 16B-3 taper lock sprocket
Material: C45, stainless steel, hardened steel, etc.
Surface treatment: Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc.

Contact Us
Description

Tapered Locking Bushing Sprocket offers a robust mechanical interference fit between the sprocket hub and shaft, ensuring a strong and reliable connection for smooth and efficient power transmission. This design minimizes energy loss and improves overall system efficiency.

Key Features

  • Mechanical Interference Fit: Securely connects sprocket hub and shaft for superior reliability and reduced slippage.
  • Efficient Power Transmission: Smooth operation with reduced friction and noise, thanks to precise tooth shaping.
  • Long Service Life: Durable materials and design extend the life of sprockets and chains, minimizing downtime and maintenance costs.
  • Material Options:
    • C45 Steel: Balances strength and economy for general applications.
    • Stainless Steel: Excellent corrosion resistance—ideal for harsh environments.
    • Hardened Steel: Heat-treated for enhanced wear resistance and durability.
  • Reduced Maintenance: Fewer replacements required, lowering overall operational costs.

Technical Specifications

  • ISO-No.: 16B-3 (1″ x 17,02mm)
  • Pitch: 25,4 mm
  • Inner Width: 17,02 mm
  • Roller Diameter: 15,88 mm
  • Tooth Width: 79,6 mm
  • Ba: 2,5 mm (radius width)
  • Rx: 26,0 mm (min. tooth radius)

Benefits

  • Strong and reliable connection for high-performance systems
  • Reduced friction and noise for smoother operation
  • Extended service life and reduced maintenance costs
  • Versatile material options to suit various environments

Choose our Tapered Locking Bushing Sprocket for superior durability, efficient power transmission, and low maintenance in demanding applications.

Technical Parameters

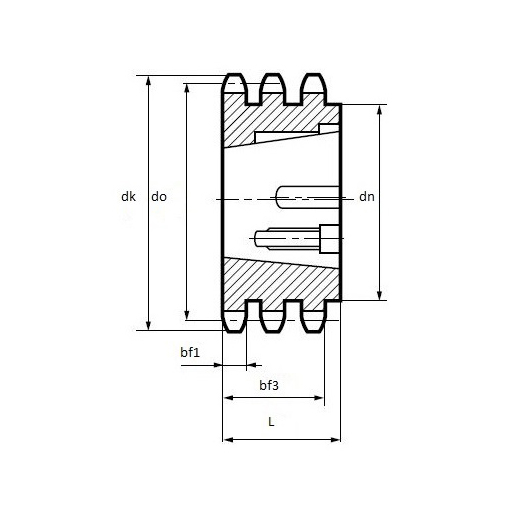

triplex taper lock sprockets 16B-3 technical table

triplex taper lock sprockets 16B-3 technical table
