timing roller chains for automobile engine industry

Timing Roller Chain is a critical component in automotive engine timing systems, designed to ensure precise synchronization of the piston stroke, valve operation, and ignition sequence. Acting as a “bridge” in the engine, it transfers force from the crankshaft to key engine components, guaranteeing coordinated intake, compression, and exhaust cycles for optimal engine performance.

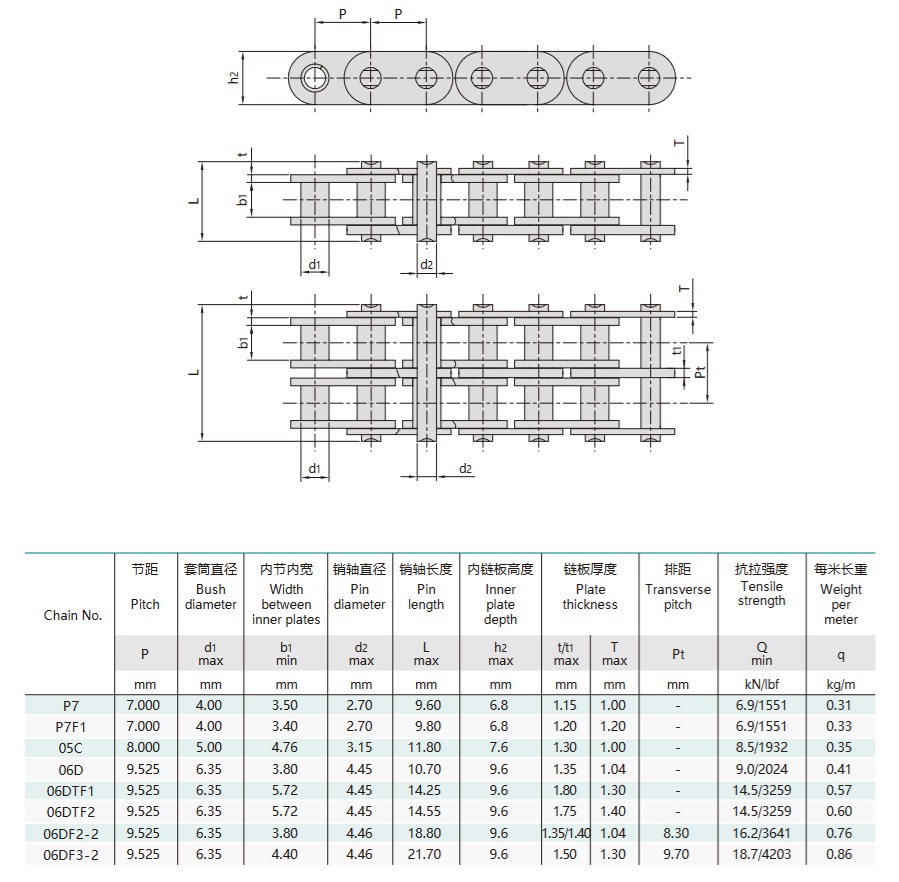

Structure & Design

• Composed of inner and outer links: the inner link includes inner plate, sleeve, and roller; the outer link includes outer plate and pin.
• Rollers are coaxially mounted on the sleeve and positioned between two inner link plates; sleeves and pins connect inner and outer link plates.
• Gap-fit design between sleeve, pin, and roller allows for smooth flexing and rotation.
• Roller wall thickness increased by 6–10%, sleeve wall thickness reduced by 8–16% for enhanced impact resistance and longevity.

Key Features & Advantages

• High Strength & Durability: Engineered to withstand high-speed operation and variable-load conditions typical of automotive engines.
• Reliable Synchronization: Maintains precise timing for piston movement, valve actuation, and ignition, ensuring optimal engine coordination.
• Improved Impact Resistance: Thicker rollers enhance durability and reliability, extending the chain’s service life.
• Versatile Application: Used in engine timing systems, oil pumps, balance shafts, and common rail pump drive systems.

Maintenance & Application

• Regular inspection and oil change are essential to maintain peak performance and longevity.
• Performance and reliability depend on proper lubrication and maintenance.
• Ideal for high-speed, demanding automotive engine environments.

Timing Roller Chains are the preferred choice for modern automotive engines, delivering reliable synchronization, high strength, and extended engine life.
