trenchless horizontal directional drill rig ≤5500 kN

trenchless horizontal directional drill rig

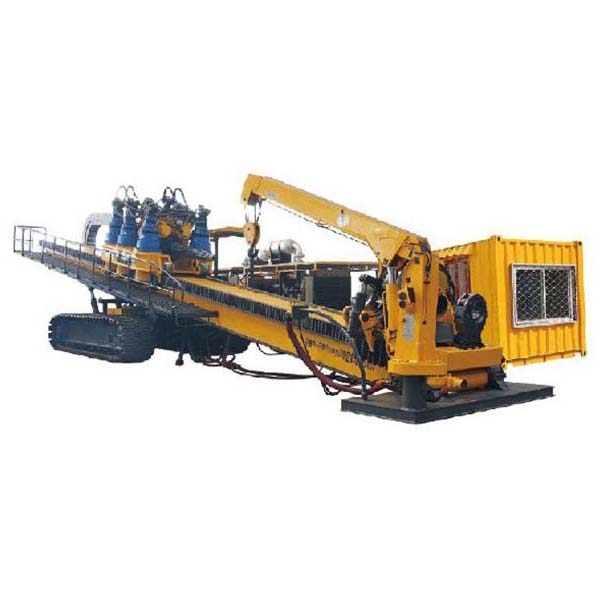

Introduction of trenchless horizontal directional drill rig

This trenchless horizontal directional drill rig is specifically designed for the trenchless installation of underground pipelines and cables. The equipment features a well-engineered structure, integrating an efficient hydraulic system and modular components for easy transportation. It delivers outstanding performance in handling various complex engineering demands and is widely used in municipal and energy sectors.

Features of trenchless horizontal directional drill rig

• Equipped with high-quality hydraulic components, combining closed and open load-sensing circuits to enhance operational efficiency.
• The rig is divided into three main parts: power unit, main body, and an independent control cabin, which facilitates transport and deployment.
• Dual power system design enables flexible switching between dual and single modes, providing energy savings and ensuring continued operation in the event of a failure.
• The control system integrates electronic and manual controls, with the main control valve sourced from internationally renowned brands for high reliability.
• Multiple parameter display methods make monitoring of pressure, torque, speed, and other data clear and convenient.
• The rotation of the power head is driven by four imported low-speed, high-torque motors, featuring two-stage stepless speed adjustment and floating spindle design for effective protection of drill rod threads.
• The thrust/pull system is driven by six motors with a gearbox, utilizing gear and rack transmission for stable and efficient operation.
• The independent control cabin is equipped with air conditioning, providing an optimized and comfortable working environment.
• The breakout and clamping device features adjustable spacing, automatic centering, and full-travel movement, ensuring precise and stable breakout operations.
• The rig uses imported high-performance gearboxes, delivering strong power and excellent climbing ability.

Application Fields

Widely used for trenchless urban pipeline installation, communication cable laying, and oil and gas pipeline projects. It is especially suitable for complex geological conditions, confined spaces, and scenarios where minimal surface disturbance is required.
