simplex taper lock sprocket type B ISO standard chain

This design utilizes a tapered hub and corresponding tapered bore, which allows the sprocket to be securely mounted to the shaft using tapered locking bushings without creating clearance.
Model: type B 20B-1 taper lock sprocket
Material: C45, stainless steel, hardened steel, etc.
Surface treatment: Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc.

20B-1 Tapered Locking Bushing Sprocket is engineered for high performance and durability in power transmission systems. The tapered locking bushing provides a mechanical interference fit between the sprocket hub and shaft, resulting in a strong and reliable connection.

Key Features

Mechanical Interference Fit: Ensures a secure connection for smooth and efficient power transmission.
Efficient Operation: Reduces energy loss and improves overall system efficiency.
Extended Service Life: Durable construction minimizes maintenance and replacement needs, lowering downtime and costs.
Precise Tooth Shape: Guarantees optimal chain engagement, reducing friction and noise for smoother operation.
High Quality Materials:
- C45 Steel: Balances strength and economy.
- Stainless Steel: Provides excellent corrosion resistance for harsh environments.
- Hardened Steel: Heat-treated for increased wear resistance and long life.

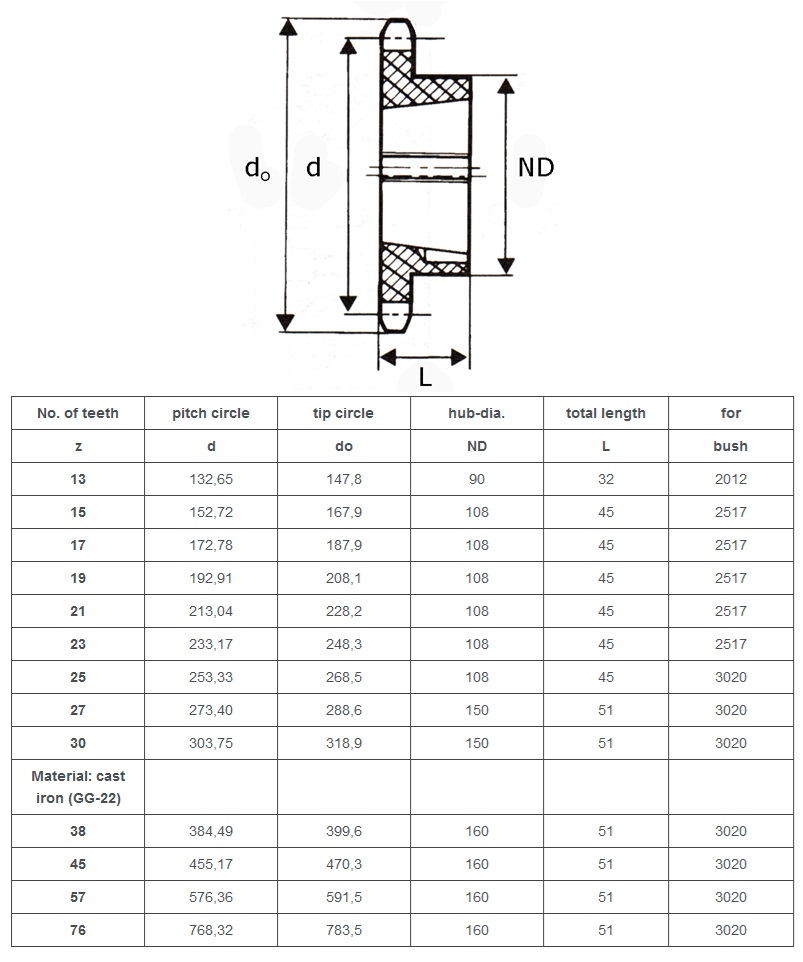

Technical Specifications

ISO-No.: 20B-1 (1 1/4“ x 3/4“)
Pitch: 31,75 mm
Inner Width: 19,56 mm
Roller Diameter: 19,05 mm
Tooth Width: 18,5 mm
Ba: 3,5 mm (radius width)
Rx: 32 mm (min. tooth radius)

Benefits

Strong, reliable connection for high-performance systems
Reduced friction, noise, and maintenance costs
Versatile material choices for various environments
Prolongs the life of sprockets and chains

Choose the 20B-1 Tapered Locking Bushing Sprocket for premium durability, efficiency, and reliability in your power transmission applications.
