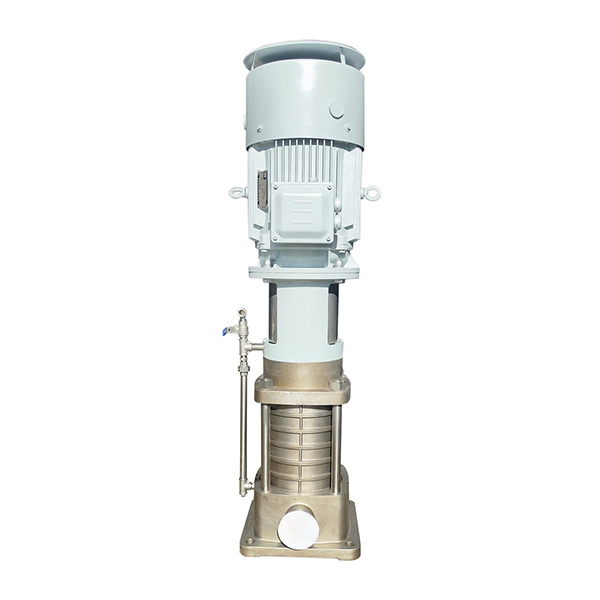

vertical stainless steel high pressure pump with multi stage for marine

These vertical stainless steel high pressure pumps are specially designed for high pressure water transfer, seawater cooling, fire water supply, and more. They are ideal for demanding marine environments such as ships and offshore platforms, delivering reliable performance and outstanding durability.

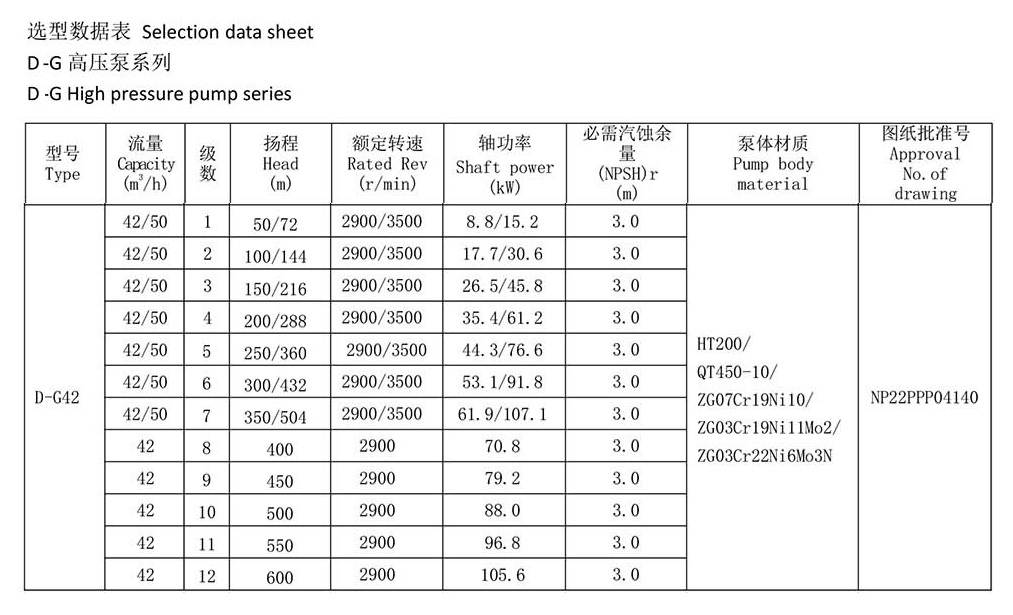

Technical Parameters

1. Pump flow range: 42 to 50 m³/h
2. Head range: 50 to 600 meters (see technical chart for details)
3. Number of stages: 1 to 12 (see technical chart for details)
4. Rated speed: 2900 to 3500 rpm

Main Features

1. Stainless steel material advantages:
   • Exceptional corrosion resistance, ideal for long-term seawater contact
   • Strong antioxidant ability, prevents rust and maintains pump appearance
   • High strength and wear resistance, extends service life
   • Resistant to high temperatures, suitable for marine cooling needs
2. Vertical multi-stage design:
   • Space-saving vertical structure for easy installation and maintenance
   • Multi-stage impeller provides gradual pressure increase, delivering higher pressure at lower flow rates
   • High-pressure capability for demanding fluid transfer applications (up to 8MPa+)
3. High pressure resistance and efficiency:
   • Engineered to withstand extremely high working pressures for long-term, stable operation
   • Fine hydraulic design and stainless steel construction offer high efficiency and reduced operating costs

Application Scenarios

1. Seawater desalination systems
2. Ship cooling water circulation
3. Fire-fighting water supply for ships and offshore platforms
4. Oil and gas platforms: oil/gas transport, seawater treatment
5. Marine equipment cleaning and rinsing

Maintenance and Repair

1. Regularly inspect impellers, seals, and bearings for wear and tear
2. Ensure proper lubrication of bearings and moving parts
3. Check sealing to prevent leakage under high pressure conditions
4. Clean pump interior regularly to remove scale and dirt buildup
