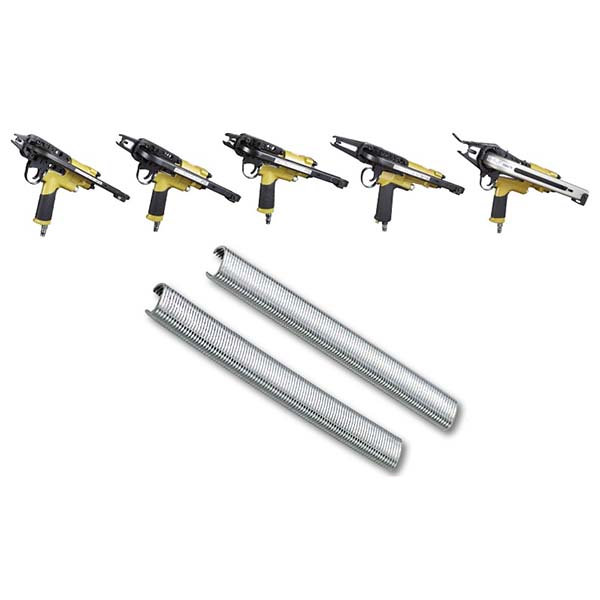

pneumatic C-ring nailer plier for fixing Simmons mattresses

The pneumatic C-ring nailer plier is a pneumatic tool designed for wire joining and is used to nail C-nails quickly and accurately into the target material to achieve a strong connection between wires or between wires and other materials.

Contact Us
Description

The whole machine weighs about 1.7kg, the size is 92×212×350mm, the structure is balanced, comfortable grip, suitable for 4 to 7kg/cm² air pressure range, standard 6mm air tube interface, widely used in mattress manufacturing, pet cages, wire mesh product assembly, furniture spring fixing and other industries.

Technical Parameters of Pneumatic C-ring Nailer Plier

  • Weight: 1.7kg
  • Size: 92x212x350mm
  • Using air pressure: 4 to 7kg/cm²
  • Using air tube diameter: 6mm
  • Use: Suitable for Simmons mattresses, bird cages and other steel wire fixing.

Features of Pneumatic C-ring Nailer Plier

  1. Special structure, nail hitting precision: The C-ring nailer body is specially designed for C-type nails, hair nail stability, less nail jamming, suitable for high-intensity continuous operation.
  2. Energy efficient, easy to operate: Pneumatic drive sensitive response, with ergonomic grip, reduce the operator’s labor intensity.
  3. Applicable to a variety of air pressure environments: It can operate normally in the air pressure range of 4 to 7kg/cm², adapting to a variety of workplaces.
  4. Lightweight design, easy to carry: Total weight of 1.7kg, center of gravity balance, one-handed operation for a long time without obvious fatigue.
  5. Strong and durable, adaptable: The key parts are made of high-strength alloy steel, impact resistance, wear resistance, prolong service life.

The Working Principle of Pneumatic C-ring Nailer Plier

  1. Air inlet start: Air through the air tube into the pneumatic C-ring nailer body internal air storage cavity.
  2. Triggering the striking mechanism: After operating the trigger, the air flows through the control valve into the cylinder, pushing the piston movement.
  3. Nail bin feeding and molding: The piston pushes the impact rod to push out the C-nail from the nail groove, and at the same time passes through the molding guide to shape the nail into a parcel shape.
  4. Fixing and clamping: The nail is struck out while clamping the target material, such as steel wire, spring, etc., to achieve firm compression.
  5. Exhaust and reset: After the action is completed, the air is discharged and the piston returns to its position, ready for the next cycle.

This way of working can complete the nailing operation in a very short time, suitable for high-efficiency batch industrial production environment.

Application Areas of Pneumatic C-ring Nailer Plier

  1. Mattress manufacturing industry: Fixing the internal spring steel wire frame of Simmons mattresses to ensure structural stability and even support.
  2. Pet cage and bird cage production: Efficiently fixing cross wire mesh, assembling cage skeleton, improving production efficiency and product solidity.
  3. Wire mesh and fence processing: Used for connecting steel wire nodes in the production of welded wire mesh, protective mesh, breeding cages, fast and stable.
  4. Furniture spring structure: Used to connect the spring system or frame mesh structure in sofa and seat.
  5. Metal molding auxiliary: Used as temporary positioning, auxiliary fixing and other scenes in certain metal processing links.
  6. Packaging and shaping operations: Cable bundling, woven bag closing and other scenes, can also be seen in its figure.
