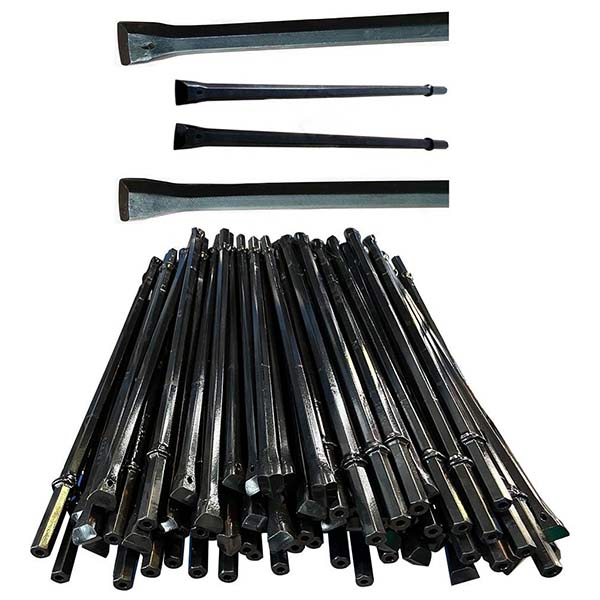

integral drill rod

integral drill rod for small hole drilling operations

The integral drill rod features a one-piece forged design, with the drill bit and rod forged as a single unit. This eliminates connection points, ensuring the solid drill rod has greater strength and effectively preventing thread loosening or breakage during operation.

Contact Us
Description

Carburizing Process

The integral drill rod adopts a carburizing process to increase surface hardness, providing better wear resistance and a longer service life.

Premium Tungsten Carbide Tip

The high-quality tungsten carbide tip offers excellent wear resistance and maintains sharpness over time, ensuring stable drilling speed.

High-Strength Alloy Steel Body

Manufactured from high-quality steel such as 55SiMnMo and 95CrMo with integrated processing and heat treatment, the integral drill rod provides outstanding fatigue resistance and durability during high-impact drilling operations.

Optimized Flushing Channel

The precisely engineered center hole ensures efficient air and water flow for chip removal, preventing the drill bit from jamming.

Applications

Beentools supply integral drill rods in various lengths and head diameters, which are widely used for small hole drilling operations.

Technical Specifications

  • Shank size: hex 19×108 mm
  • Head diameter: 26 mm to 34 mm
  • Rod length: 400 to 2400 mm
Technical Parameters
integral drill rod for small hole drilling operations
19 mm 3/4" integralSeriesL (mm)L (foot, inch)D (mm)D (inch)Order numberWeight (kg)

Hex 19 x 108 mm shank

Hex 19 x 108 mm shank

218002', 7 1/2"281 1/8B216-1908-81282.0
16005', 3"271 1/16B216-1916-81273.8
24007', 10"261 1/32B216-1924-81265.5
246001', 11 5/8"271 1/16B216-1906-81271.6
12003', 11 1/4"261 1/32B216-1912-81262.9
254001', 3 3/4"351 3/8B216-1904-81351.2
8002', 7 1/2"341 11/32B216-1908-81342.1
