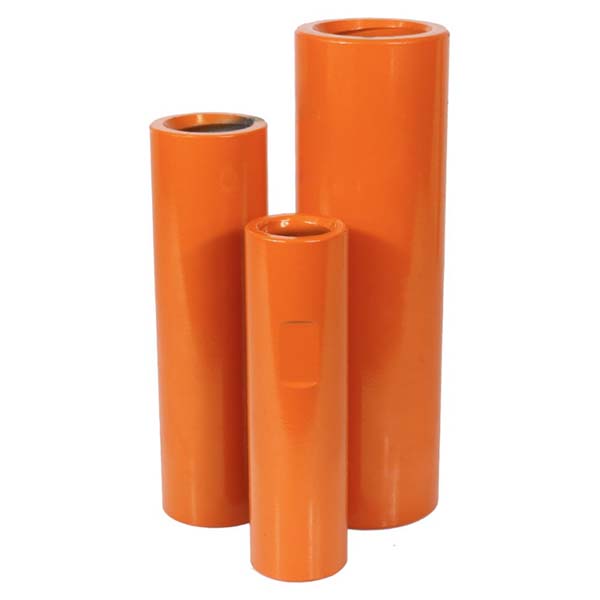

R32 T38 threaded coupling sleeve

R32 T38 threaded coupling sleeve for underground drilling

The threaded coupling, also known as a connector, is required when using a rock drill with a male shank adapter and a conventional rock drill. The threaded coupling is used to connect the adapter to the rock drill, ensuring contact at both ends.

Contact Us
Description

This series of threaded coupling sleeves is available in two styles: middle stop and reduction.

The reduction-type threaded coupling sleeve can change the thread type and size, for example, converting R32 to R38 or R32 to T38.

Technical specifications of R32 T38 threaded coupling sleeve

  • Specification: Available in middle stop and reduction types.
  • Thread connection options: R32, R38, and T38.
  • Length: Available in 150 mm, 160 mm, 170 mm, and 190 mm.
  • Diameter: 45 mm and 55 mm.
  • Material: High-strength alloy steel
  • Manufacturing process: Fully carburized heat treatment
  • Weight: Ranges from 1.0 kg to 2.2 kg.
Technical Parameters
R32 T38 threaded coupling sleeve for underground drilling
Coupling sleeveL (mm)L (inch)D (mm)D (inch)ThreadOrder numberWeight (kg)

Middle stop

Middle stop

1505 7/8451 3/4R32B302-4515-54541.0
1606 5/16451 3/4R32B302-4516-54541.1
Reduction

Reduction

1706 3/4552 5/32R32, R38B303-5517-54561.6
1907 1/2552 5/32R32, T38B303-5519-54762.2
