R38 threaded cross

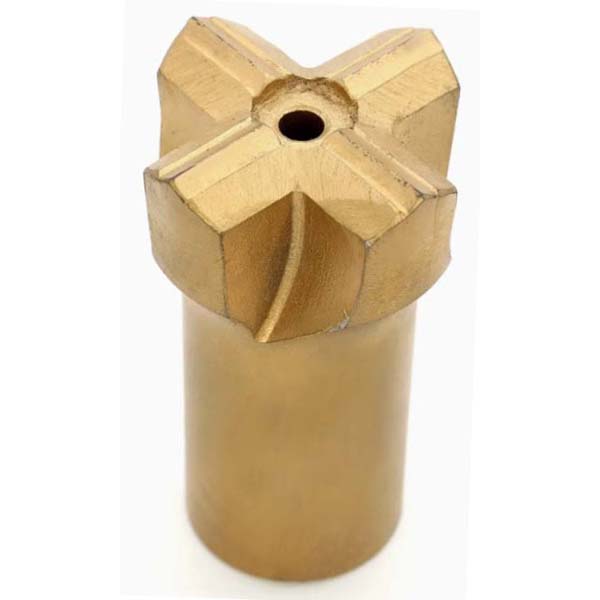

R38 threaded cross bit with tungsten carbide material

This R38 threaded series of drill bits includes both cross-type and X-type designs. The cross bit is easier to sharpen because the included angles on all four sides are equal. The X-type bit is suitable for rock formations that are very prone to wear and cracking.

Contact Us
Description

Technical Specifications of R38 Threaded Cross Bit

  • Connection thread: R38
  • Head material: Embedded tungsten carbide teeth
  • Bit body material: High-strength alloy steel
  • Flushing grooves: Distributed along the bit for discharging cuttings and waste fluid, and for cooling medium.
  • Head design: Available in cross and X shapes
  • HxT: 16×10 mm
  • Diameter: 64 mm
  • Weight: 1.63 kg
Technical Parameters
R38 threaded cross bit with tungsten carbide material
Thread bit, InsertD (mm)D (inch)Insert H x TThreadOrder numberWeight (kg)

Cross

Cross

642 1/216 x 10 mmR38B158-6416-56101.63

X bit

X bit

642 1/216 x 10 mmR38B168-6416-56101.63
