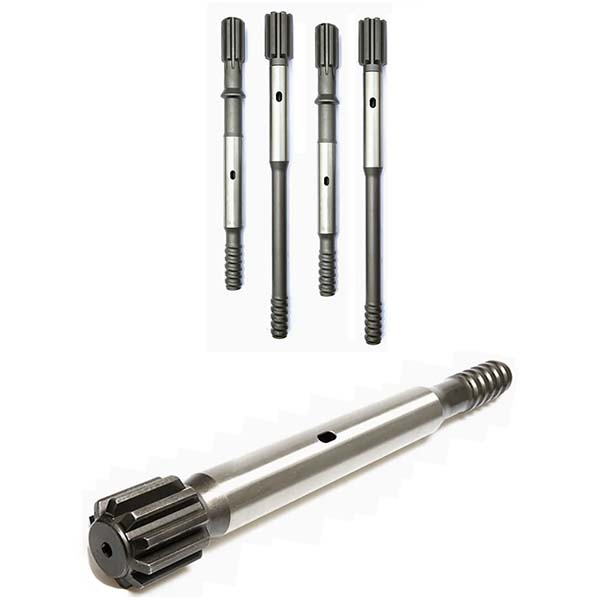

rock drill shank adapter compatible with secoma

rock drill shank adapter compatible with secoma machine

The internally threaded rock drill shank adapter is suitable for situations where drilling space is limited and overall feed length is critical, such as underground roof bolting.

Contact Us
Description

Function of the Rock Drill Shank Adapter

The function of the rock drill shank adapter is to transmit rotational torque, feed force, impact energy, and flushing medium to the drill string, such as extension rods and drifting rods.

Compatible Shank Adapter Models for Secoma Rock Drills

Users can choose different models of shank adapters, which are suitable for various models of Secoma rock drills, as shown below:

  • Secoma 200, 300
  • Secoma 200

Technical Information for Rock Drill Shank Adapters

  • Length: 485 mm, 351 mm, etc.
  • Diameter: 38 mm and 45 mm.
  • Connection thread specifications: R32 and R38.
  • Weight: 3.7 kg to 4.2 kg.
Technical Parameters
rock drill shank adapter compatible with secoma machine
Shank adapterL mmD mmThreadOrder numberWeight kg

Secoma 200, 300

Secoma 200, 300

48538R32B448-3848-51543.9
48538R38B448-3848-51564.2
48538T38B448-3848-51764.1

Secoma 200

Secoma 200

35145R32B448-4535-50543.7
download
