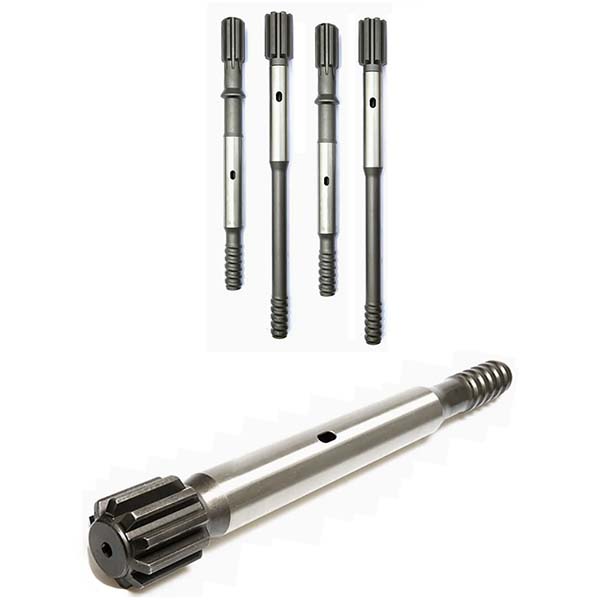

rock drill shank adapter suitable for soosanstd

rock drill shank adapter suitable for soosanstd machine

The function of the rock drill shank adapter is to transmit the impact energy and rotational torque from the rock drill piston to the drill rod without loss, and it must be able to withstand high levels of stress.

Contact Us
Description

High-Quality Coupling Sleeves and Rock Drill Shank Adapters by beentools

beentools provides high-quality coupling sleeves and rock drill shank adapters suitable for all common thread types and combinations.

Application for soosanstd Rock Drills

The rock drill shank adapter is suitable for soosanstd rock drills, specifically the Soosan std11T.

Technical Information for Rock Drill Shank Adapters

  • Length: 620 mm, 650 mm, etc.
  • Diameter: 56 mm.
  • Connection thread specifications: R38, T38, T45, and T51.
  • Weight: 7.4 kg to 8.5 kg.
Technical Parameters
rock drill shank adapter suitable for soosanstd machine
Soosan std11TL mmD mmThreadOrder numberWeight kg

Soosan std11T

Soosan std11T

62056T38B496-5662-51767.4
62056T45B496-5662-51778.2
62056T51B496-5662-51788.5

Soosan std11T

Soosan std11T

63856R38B468-5663-51567.6
65056T38B468-5665-51767.6
