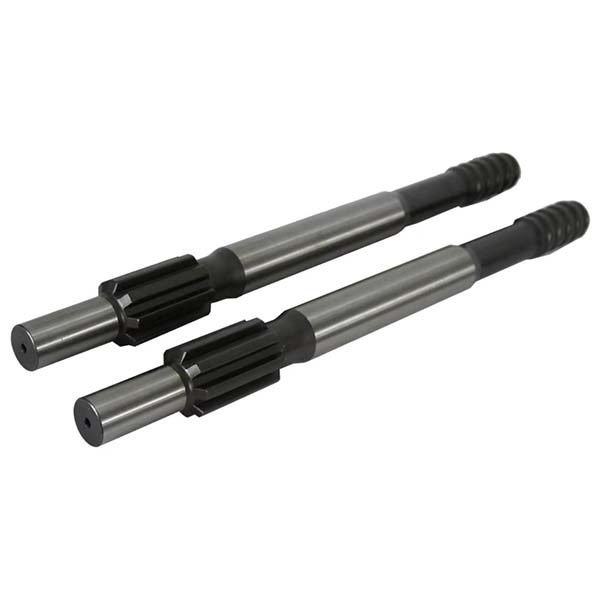

Name: rock drill shank adapter suitable for furukawa machine
Brand: beentools

Description

Customizable Rock Drill Shank Adapter Colors

The color of the rock drill shank adapter can be customized according to the customer’s specific requirements, enabling seamless integration with existing equipment and enhancing the overall aesthetics of the mine site.

Compatible Models for Furukawa Rock Drills

Users can select different models of shank adapters suitable for various Furukawa rock drill models, as listed below:

Furukawa HD150
Furukawa HD300
Furukawa HD609
Furukawa HD612
Furukawa HD615
Furukawa HD709
Furukawa HD712
Furukawa HD709RP
Furukawa HD712RP
Furukawa HD715RP

Technical Information of the Shank Adapter

Length: 525 mm, 654 mm, 690 mm, 884 mm, etc.
Diameter: 39.8 mm, 50.8 mm, 57.8 mm, etc.
Thread type: R38, T38, T45, and T51.

Technical Parameters

rock drill shank adapter suitable for furukawa machine
Shank adapter	L mm	D mm	Thread	Order number	Weight kg
Furukawa HD150	525	39.8	R38	B438-4052-5156	4.9
Furukawa HD150	525	39.8	T38	B438-4052-5176	4.9
Furukawa HD300	654	44.7	T38	B436-4565-5176	6.5
Furukawa HD300	654	44.7	T45	B436-4565-5177	6.8
Furukawa HD609	690	44.7	T38	B438-4569-5176	7.6
Furukawa HD609	620	44.7	T45	B438-4562-5177	7.4
Furukawa HD612	715	50.8	T45	B438-5171-5177	8.3
Furukawa HD612	884	50.8	T45	B438-5188-5177	9.6
Furukawa HD615	700	57.8	T45	B438-5870-9177	8.2
Furukawa HD615	700	57.8	T51	B438-5870-9178	8.7
Furukawa HD709	620	44.8	T45	B438-4562-9177	7.1
Furukawa HD712	790	50.9	T51	B438-5179-9178	10.7
Furukawa HD709RP	815	45	T38	B438-4581-9176	9.2
	785	45	T38	B438-4578-9176	9.3
	815	45	T45	B438-4581-9177	9.6
	785	45	T45	B438-4578-9177	9.7
Furukawa HD712RP	880	51	T45	B438-5188-9177	12.7
Furukawa HD715RP	880	58	T51	B438-5888-9178	16.0
