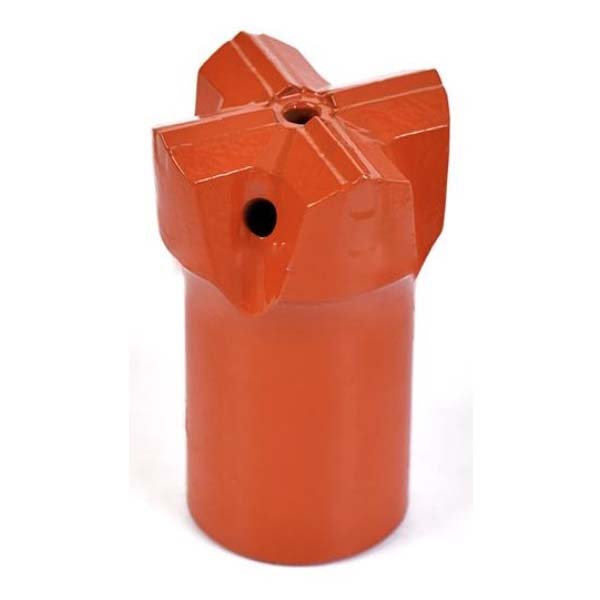

T38 threaded insert cross bit

T38 threaded insert cross bit for mining drilling tools

This series of T38 threaded cross bits and X bits is specifically designed for deep hole drilling in underground mining. They are capable of handling abrasive ore bodies and hard rock, thereby improving productivity and safety.

Contact Us
Description

Technical Specifications of the T38 Threaded Insert Cross Bit

  • Connection thread: T38
  • Head material: Inserted tungsten carbide teeth
  • Bit body material: High-strength alloy steel
  • Flushing grooves: Distributed along the bit, used for removing debris and waste fluid, and for cooling media
  • Head design: Cross and X shape available
  • HxT: 16x10mm
  • Diameter: 64mm and 76mm
  • Weight: 1.6kg and 2.5kg
Technical Parameters
T38 threaded insert cross bit for mining drilling tools
Thread bit, InsertD (mm)D (inch)Insert H x TThreadOrder numberWeight (kg)

Cross

Cross

642 1/216 x 10 mmT38B158-6416-76101.6

X bit

X bit

642 1/216 x 10 mmT38B168-6416-76101.6
76316 x 10 mmT38B168-7616-76102.5
