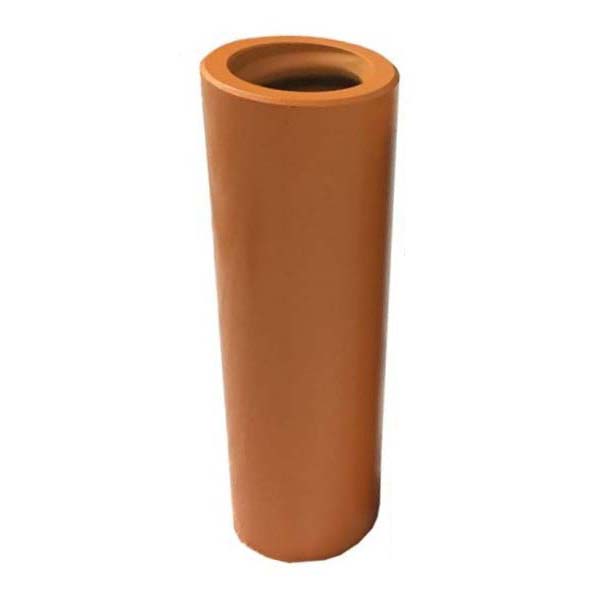

T45 threaded coupling sleeve

T45 threaded coupling sleeve for long hole mining rod

The T45 threaded coupling sleeve is used as a connector between the drill bit and the drill rod. It transmits the rotational motion and axial force generated by the drilling rig to the drill bit, enabling efficient ore drilling.

Contact Us
Description

Threaded Coupling Sleeve Material and Features

The threaded coupling sleeve is made of high-strength alloy steel, offering excellent durability and wear resistance.

Technical Specifications of the T45 Threaded Coupling Sleeve

  • Specification: Middle stop
  • Thread connection type: T45
  • Length: 207 mm
  • Diameter: 66 mm
  • Material: Forged high-strength alloy steel
  • Manufacturing process: Full carburizing heat treatment
  • Weight: 3.2 kg
Technical Parameters
T45 threaded coupling sleeve for long hole mining rod
Coupling sleeveL (mm)L (inch)D (mm)D (inch)ThreadOrder numberWeight (kg)

Middle stop

Middle stop

2078 1/16662 5/8T45B302-6620-77773.2
