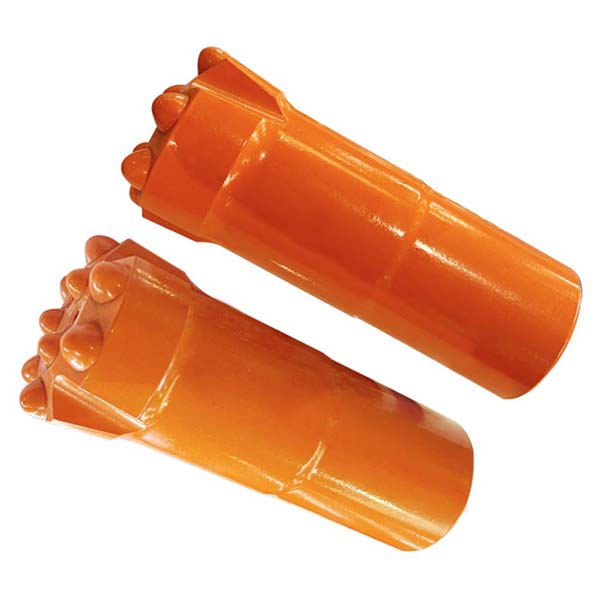

T60 threaded drop center retrac button bit

T60 threaded drop center retrac button bit for drilling

The customers of beentools’ T60 threaded drop center retrac button bit are spread across countries such as Poland, Canada, the United States, France, Spain, the Middle East, Italy, South Africa, Australia, Iran, Malaysia, and others.

Contact Us
Description

T60 Threaded Button Bit Features

The T60 threaded button bit features a reasonable design with high flatness rate, smooth boreholes, strong rigidity, fast striking speed, low failure rate, stable drilling, and high penetration rate.

Product Overview

This webpage mainly introduces the T60 threaded button bit, T60 drop center button bit, T60 retract button bit, and T60 drop center retract button bit.

Technical Information of T60 Threaded Button Bit

  • Connection Thread: T60
  • Head Material: Tungsten carbide
  • Bit Body Material: High-strength alloy steel
  • Flushing Grooves: Distributed along the bit for chip removal and cooling
  • Head Design: Button shape
  • Diameter: 92 mm, 96 mm, 102 mm, 115 mm, and 127 mm
  • Gauge Button Angle: 35 degree and 40 degree
  • Gauge Buttons: 8×12 mm, 8×13 mm, etc.
  • Center Buttons: 6×12 mm, 79×14 mm, etc.
  • Weight: 5.2 kg to 9.4 kg
  • Head Manufacturing Process: Hot-pressing inlay technology
  • Other Manufacturing Processes: Full carburizing heat treatment, high-frequency treatment, and phosphating treatment
Technical Parameters
T60 threaded drop center retrac button bit for drilling
Thread bit, ButtonD (mm)D (inch)Buttons GaugeButtons CentreGauge button angleThreadOrder numberWeight (kg)

Button

Button

923 5/88 x 12 mm6 x 12 mm35 degreeT60173-9214-7A055.2
963 3/48 x 13 mm6 x 12 mm35 degreeT60173-9614-7A055.3
10248 x 13 mm6 x 13 mm40 degreeT60173-0214-7A046.4
1154 1/28 x 14 mm6 x 13 mm35 degreeT60173-1514-7A057.8
12759 x 14 mm9 x 14 mm35 degreeT60173-2718-7A058.9

Button, drop center

Button, drop center

10248 x 13 mm7 x 12 mm35 degreeT60173-0215-7A056.4
1154 1/28 x 14 mm7 x 13 mm35 degreeT60173-1515-7A057.8
12758 x 14 mm7 x 14 mm35 degreeT60173-2715-7A058.8

Button, flat, retrac

Button, flat, retrac

10248 x 13 mm6 x 13 mm40 degreeT60174-0214-7A047.6
1154 1/28 x 14 mm6 x 13 mm35 degreeT60174-1514-7A059.4
12759 x 14 mm9 x 14 mm35 degreeT60174-2718-7A0513.1

Button, drop center, retrac

Button, drop center, retrac

10248 x 13 mm7 x 12 mm35 degreeT60176-9215-7A057.7
1154 1/28 x 14 mm7 x 13 mm35 degreeT60176-9615-7A059.5
12758 x 14 mm7 x 14 mm35 degreeT60176-0215-7A0513.2
