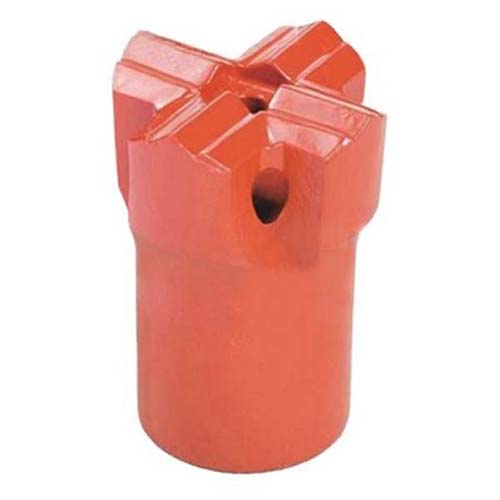

threaded cross x bit for underground long-hole drilling

Name: threaded cross x bit for underground long-hole drilling
Brand: beentools

Threaded cross X bits are capable of withstanding strong impact and abrasion, ensuring drilling efficiency and reducing operating costs throughout the entire service life of the bit.

Description

Technical Specifications of Threaded Cross X Bit

Key Features

Connection Thread: R32
Head Material: Embedded tungsten carbide teeth
Bit Body Material: High-strength alloy steel
Slag Flush Grooves: Distributed along the bit for discharging waste slurry and cooling medium
Head Design: Available in cross and X shape
HxT: 16 x 10 mm
Diameter: Available in 50 mm, 55 mm, and 60 mm
Weight: Ranges from 1.0 kg to 1.2 kg

Technical Parameters

threaded cross x bit for underground long-hole drilling
Thread bit, Insert	D (mm)	D (inch)	Insert, H x T	Thread	Order number	Weight (kg)
Cross	50	2	16 x 10 mm	R32	B158-5016-5410	1.0
	55	2 1/6	16 x 10 mm	R32	B158-5516-5410	1.2
	60	2 3/8	16 x 10 mm	R32	B158-6016-5410	1.2
X bit	50	2	16 x 10 mm	R32	B168-5016-5410	1.0
	55	2 1/6	16 x 10 mm	R32	B168-5516-5410	1.2
	60	2 3/8	16 x 10 mm	R32	B168-6016-5410	1.2
