frequently asked questions about drill extension rod

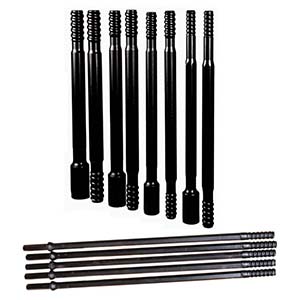

A drill extension rod, also known as an extension drill rod or extension rod, is a long drilling rod used to increase drilling length and depth. Both ends of a drill extension rod are typically equipped with threaded connections, enabling it to link with other drill rods, drill bits, or drilling equipment.
When the desired borehole depth exceeds the length of a single drill rod, drill extension rods can be connected in sections for continuous drilling, making them an essential tool for deep-hole drilling.

The primary function of a drill extension rod is to lengthen the total drill string, making it possible to reach greater drilling depths that a single rod cannot achieve.
Drill extension rods are widely used in situations requiring deep subsurface or rock penetration:

• Deep Hole Drilling: Essential for projects such as geotechnical investigation, mineral exploration, water well drilling, and anchor bolt installation.
• Tunneling and Mining Operations: Used in underground construction for borehole creation, blasting holes, or ground reinforcement.
• Foundation and Piling Projects: Applied to deep foundation piling, micro-piles, and grouting holes.
• Horizontal Directional Drilling (HDD): Although HDD has dedicated drill rods, extension rods can be used for pilot hole operations, increasing drill reach.
• Drilling in Confined Spaces: In restricted areas, shorter extension rods can be joined section by section, making handling and transport more convenient.

• Mining Operations: Used for blasting, ventilation raise drilling, exploratory holes, and other types of mine drilling.
• Stone Quarrying: Applied to drilling main blasting holes and splitting holes, facilitating stone separation and transport.
• Construction and Infrastructure: Used in deep foundations, anchor installations, tunnel construction, micro-piles, and ground reinforcement.
• Water Well Drilling: Enables penetration of aquifers at various depths to meet agricultural, industrial, and domestic water needs.
• Geotechnical Investigation: Convenient for core sampling, geological surveys, environmental assessments, and other tasks requiring deep rock/soil samples.
• Resource Exploration: Used for core sampling and deep drilling in oil, natural gas, and other resource exploration.

Choosing the right extension drill rod is important for safety and drilling efficiency. A suitable rod ensures efficient energy transfer, reduces component wear, and lowers downtime risks.

• Consider Drilling Method and Depth: First, determine your specific drilling needs—such as water well drilling, mineral exploration, or foundation engineering. Drilling depth decides the rod’s length and diameter. Deep-hole operations often require thicker and stronger rods to withstand weight and impact. Formation conditions also differ—abrasive environments require wear-resistant rods, while fractured rock needs rods with better shock resistance. Select according to geological conditions.
• Evaluate Thread Type and Connection: Thread type and connection method affect compatibility with your rig, drill bit, and other rods. Mismatched threads can reduce energy transfer efficiency and cause premature wear or breakage. Common thread types include API standards, proprietary profiles, and specialized threads for drilling. Ensure all parts in the drill system have matching threads.
• Check Material and Heat Treatment: The material and heat treatment of a drill rod directly affect its strength, durability, and fatigue life. High-quality alloy steel is often used, with important heat treatments such as overall tempering, quenching, and tempering for optimal toughness and hardness. Prefer rods that have undergone special hardening and tempering—they better withstand repeated stress, resist deformation and breakage, last longer, and reduce operating costs.
• Determine Diameter and Rigidity: Rod diameter affects rigidity and power transmission. Larger diameter rods are stiffer and better for deep drilling and high torque transfer, but they weigh more and require higher rig power. Balance the need for rigidity, weight, and drilling rig capacity when making your choice.

Proper usage processes determine operational safety and bit life. The main steps include:

• Pre-Operation Inspection: Before each use, carefully check all extension rods for wear, cracks (especially at the threads), and ensure threads are clean and free of debris, appropriate for the planned depth and conditions.
• Assembly and Connection: Start by connecting the first extension rod to the drifter or rotary head, ensuring a tight and secure fit. Connect additional rods as needed during drilling, aligning threads and tightening with dedicated tools to prevent loosening and guarantee efficient energy transfer.
• Drilling Operation: During drilling, maintain steady feed pressure for efficient rock breaking. Monitor equipment gauges and rod operation for sudden shocks or side loads, which could cause bending or damage.
• Disassembly and Storage: After drilling, remove extension rods in order from the bit end. Use dedicated tools when disassembling to avoid damaging threads. Clean all rods thoroughly, apply thread grease if possible, and store them in a dry area to prevent corrosion—ensuring trouble-free use next time.
